The gas spring assembly line is an automated assembly, performance testing, force measurement, and inflation equipment designed for "automotive gas springs".

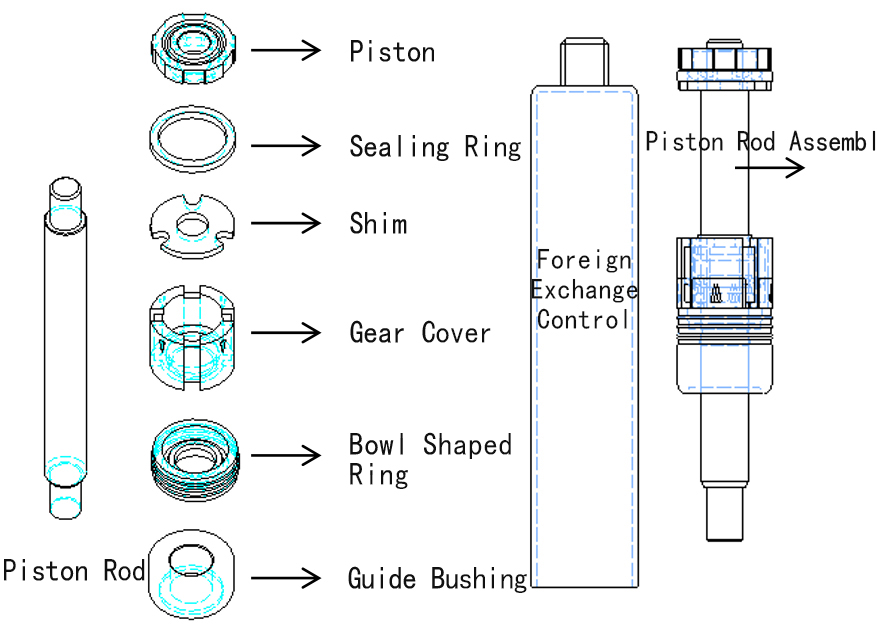

The assembly sequence of machine A is: piston rod feeding - rod detection - guide sleeve feeding - bowl shaped ring feeding - stopper sleeve feeding - missing part inspection - gasket feeding - sealing ring feeding - piston feeding - component inspection - piston rod riveting - CCD detection - finished product (piston rod component) return.

The assembly sequence of the BC machine is: tube feeding - tube oil injection and testing - piston rod assembly oil injection - piston rod assembly feeding - piston rod assembly pressing - material return and testing - outer tube sealing - pull shaft testing - rolling groove - pull rod testing - finished product return.

The assembly sequence of the D machine is: piston rod pressing - inflation - anti rebound - friction force measurement - performance testing - finished product return.

According to customer customization, the assembly sequence can be adjusted.

Beat: 9 seconds per piece.
